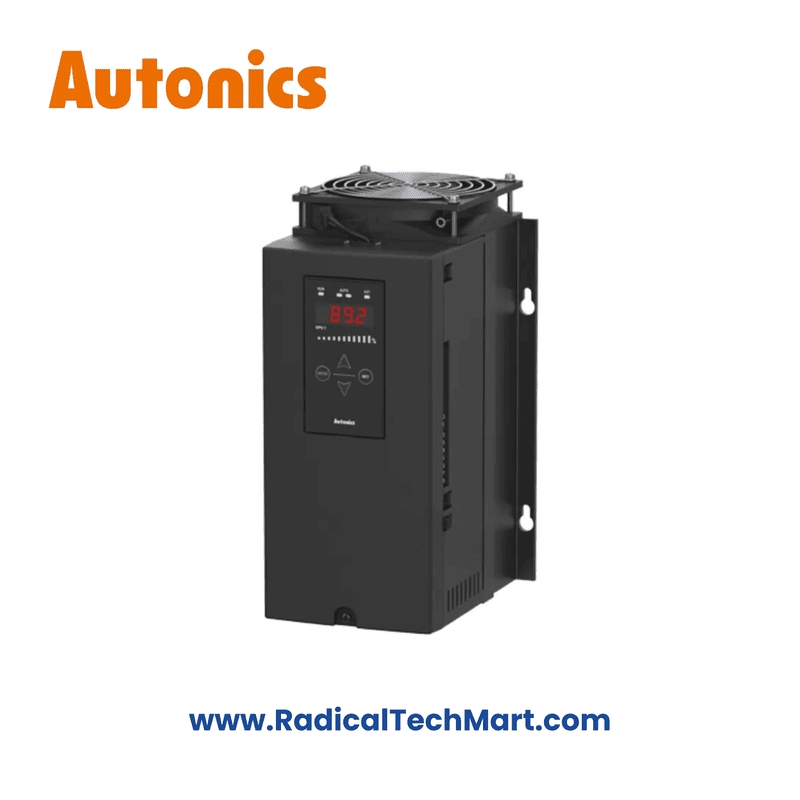

Autonics DPU Series Digital Thyristor Power Controllers
Non-returnable
₹31,000.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model Number | DPU Series Digital Thyristor |
| Control Phase | Single Phase / 3-Phase |
| Rated frequency | 50/60Hz (auto recognition), allowable frequency range: ± 2 Hz |
| Min. load Current | 1 A |
| Output range | Phase control: 0 to 98% , Z.C. control : 0 to 100% |
| Control Method |
|
| digital Input | AUTO / MAN Selectable, RUN / STOP selectable, Reset, Output holding, SP set (SP 1 to 6) |
| Display Type | Control Input, load voltage, load current, load power, load resistance, Power supply frequency |
| Min. display output | Over 2.5% of rated voltage / current |
| RS485 comm. | Modbus RTU method |
| Approval | C ∈ EAC |
| Power supply | 110 / 220 / 380 / 440 VAC ∼model ( fan and control power 220 VACs∼50/60Hz separately) |
| Allowable voltage range | Single-Phase: 90 to 110% of power supply 3-phase: 85 to 115% of power supply |
| Power consumption | Single-phase: ≤ 7 W ( except fan power ) 3-phase: ≤10 W ( except fan power ) |
| Display method |
|
| Dielectric strength | Between input terminal and power terminal:2000 VAC∼50/60Hz for 1 min |
| Vibration | 0.75 mm double amplitude at frequency of 5 to 55 Hz (for 1 min) in each X,Y,Z direction for 2 hours |
| Insulation resistance | ≥ 200 MΩ (500 VDC=" me"gger) |
| Noise immunity | ± 2 kV square waves noise (pulse width: 1μs) by the noise simulator |
| Ambient temp. | -10 to 50°C, storage: -20 to 80°C (no freezing or condensation) |
| Ambient humidity | 5 to 90%RH, storage: 5 to 90%RH (no freezing or condensation) |
